Key Features
- High-speed capability, operating at speeds of up to 10.000 - 15.000 stitches per hour.
- Supports a wide range of staples, thanks to optional exchange part sets for various wire types, loop diameters & crown widths.
- Toolless centralised adjustment of wire length and stitching thickness in seconds.
- Now fitted with a durable aluminium case.
- Enhanced operator experience compared to previous models, with improved accessibility and tool-free adjustments.
- Removable, slim and robust centring device.
- Ideal for standard stitching, loop stitching, and even ribbon wire stitching.
Specification
| Standard Stitching | Loop Stitching | Ribbon Wire Stitching | |||||||
|---|---|---|---|---|---|---|---|---|---|

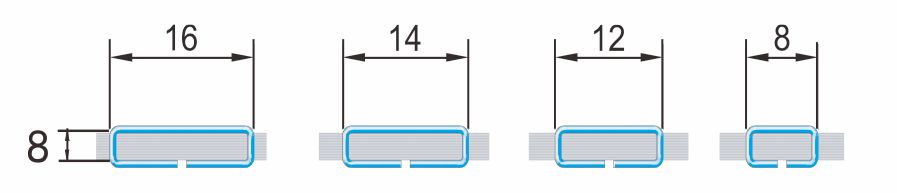

| Crown Width | 8mm | 14mm | 16mm | 10mm | 14mm | ||||

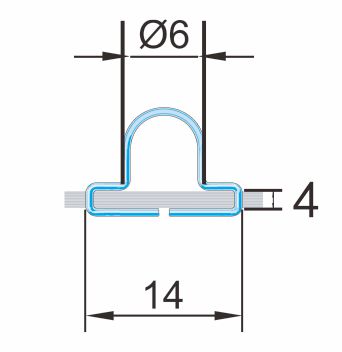

| Inner Diameter Loop | 6mm | ||||||||
| Min. Distance between Staples | 52-65mm | 54-60mm | 64-68mm | ||||||
| Max. Stitching Thickness | 8mm | 4mm | 3mm | ||||||
| Round Wire | |||||||||
| Nr. 21-23 (0.80-0.70mm) | x | x | |||||||
| Nr. 24-26 (0.60-0.50mm) | x | x | x | ||||||
| Nr. 24-28 (0.60-0.40mm) | x | x | x | ||||||
| Nr. 26-30 (0.50-0.35mm) | x | ||||||||
| Flat Wire Nr. I-III (0.70x0.35 - 0.75x0.55mm) | x | ||||||||

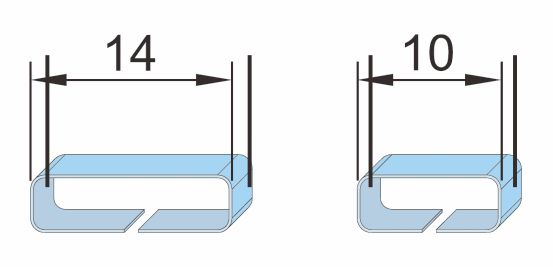

| Ribbon Wire 2.5 x 0.3-0.4mm | x | x | |||||||
