Key Features
- Universal replacement for Muller Martini HK 75, 55, and 45 heads.
- Toolless, quick and easy wire length and thickness adjustments.
- Support stitching from 2 sheets to 6mm, up to 10.000/hour.
- Suitable for multiple applications due to its narrow design (45mm minimum between stitch distance centres).
- Left-centering device allows for the narrowest possible distance between stitch centres.
Specification
| Parameter | M45/6 |
|---|---|
| Max. Stitching Thickness | 6mm |
| Distance between Staples (Standard) | 45 - 54mm |

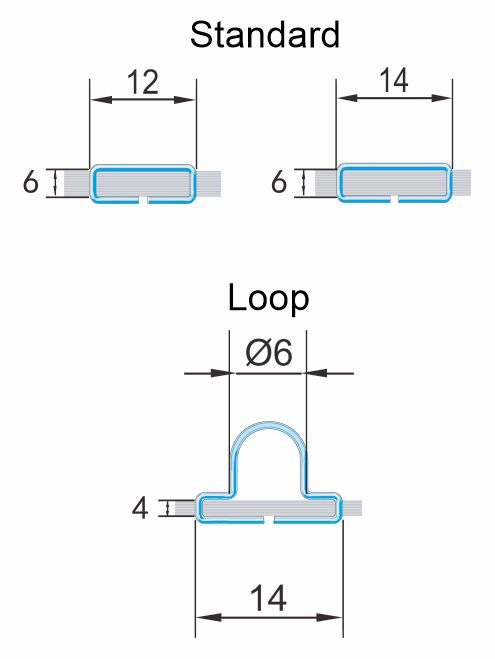

| Crown Width | 12mm |
| Round Wire | |
| No. 24-26 (0.6-0.5mm) | x |
| or No. 26-28 (0.5-0.4mm) | x |
| or No. 23 (0.7mm) | x |
| Optional Stitching Head | |
| for Crown Width 14mm | x |
| Min. Distance between Staples | 47 - 56mm |
