Key Features
- Ultra-compact design with stitch centres reduced to just 43mm.
- Front-facing access for easy loading and operation.
- Tool-free wire length and cutting box adjustment for varying in a matter of seconds.
- Fast and simple conversion between standard and loop stitching with interchangeable parts.
- Supports up to 14.000 stitches per hour.
- New moisture-resistant parts with enhanced durability.
Specification
| Parameter | Universal 43/6-S |
|---|---|

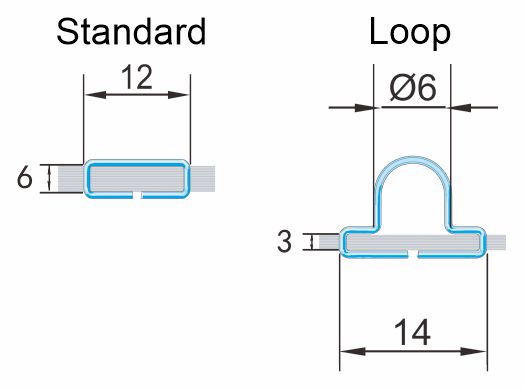

| Standard Stitching | |
| Max. Stitching Thickness | 6mm |
| Min. Distance between Staples (Standard) | 43 - 52mm |
| Crown Width | 12mm |
| Round Wire | |
| No. 24-26 (0.6-0.5mm) | x |
| or No. 26-28 (0.5-0.4mm) | x |
| Optional Exchange Parts | |
| for Loop Stitching | x |
| Round Wire No. 24-26 (0.6 - 0.5mm) | x |
| Loop Stitching | |
| Inner Diameter of Loop | 6mm (bzw) |
| Max. Stitching Thickness | 3mm |
| Min. Distance between Staples | 48 - 54mm |
| Optional Exchange Parts | |
| for Loop Stitching 6mm | x |
| for Loop Stitching 8mm | x |
| Round Wire | |
| No. 24-26 (0.6 - 0.5mm) | x |
| or No. 26-28 (0.5 - 0.4mm) | x |
